Advantages:

• No heat treatment (heat tunnels or flames) is applied during use of Stretch Hood, which eliminates any possible risk and quality concern that may arise due to heat exposure.
• Tailor made films with high tenacity, elastic recovery and stretching values are used form optimum stretch hood performance.
• UV additive is used providing stretch hood is protected from external factors (sunlight, rain, moisture and dust) for an extended shelf life.

Sectors of Use:

• Ceramic manufacturers
• Marble and Granite producers
• Construction Chemicals manufacturers
• Cement Producers
• Brick Manufacturers
• Gas and Concrete producers
• Household Appliance Manufacturers
• Polymer producers of various grades

Technical Data:

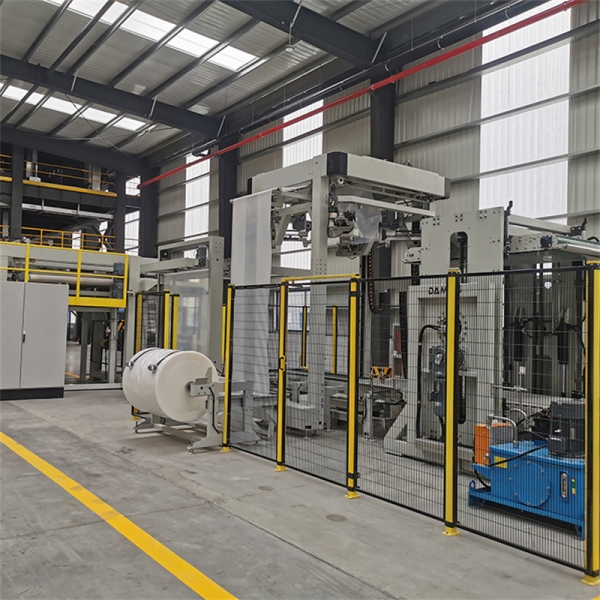

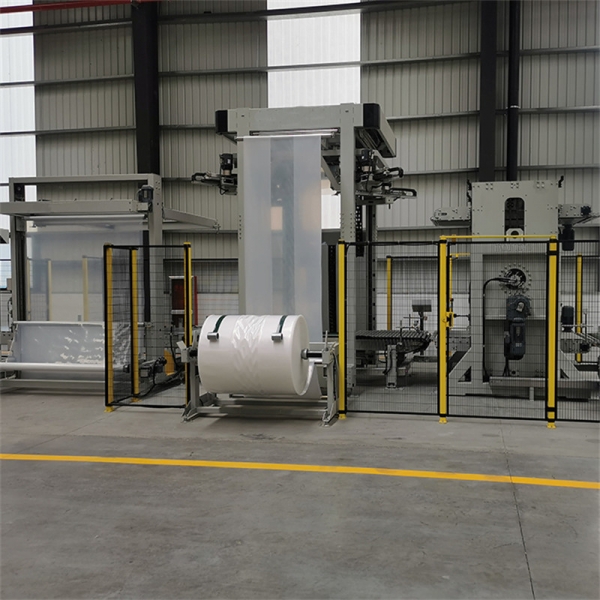

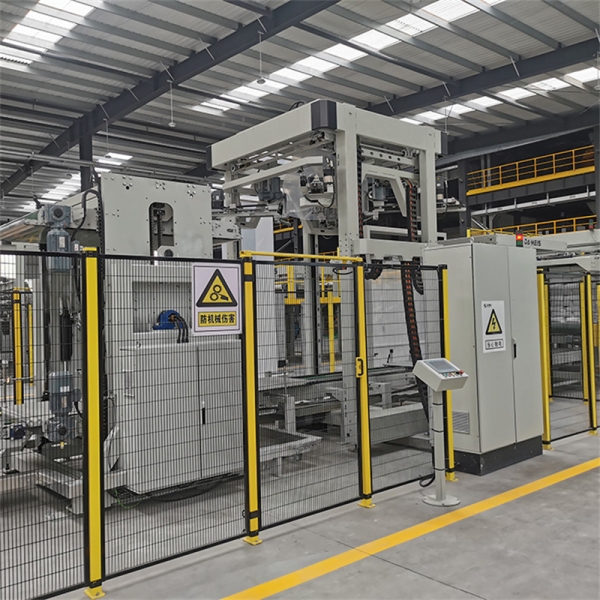

The Stretch Hooder comprises:

Infeed Roller Conveyor

For transporting the filled pallet towards the hooder

Suitable for a pallet width up to 1200 mm

Conveyor length 1600 mm

Height 600 mm

Stretch Hooded main frame

Electric control cabinet complete with PLC and operating panel.

Central structure made of four painted steel tubing.

Pneumatic unwinding group.

Horizontal frame supporting a welding bar and a cutting bar, cutting operated by a pneumatic cylinder.

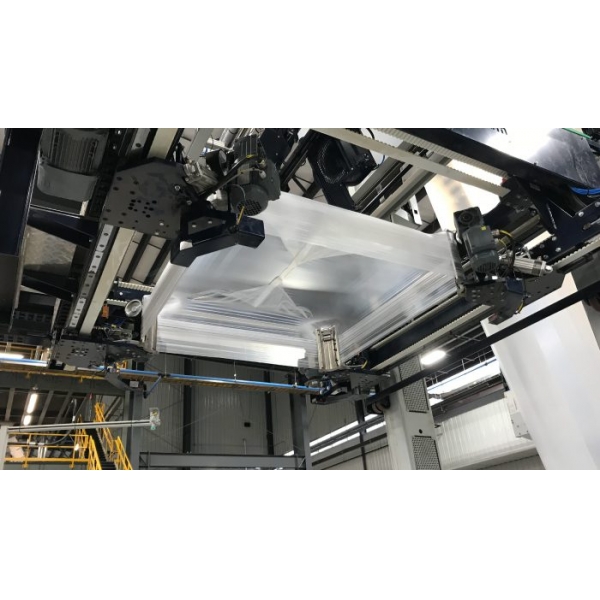

Mechanical opening system, working with grippers activated by pneumatic cylinders.

Film reel support (including automatic end of reel detection)

Four (4) film gripper arms having steel wheels to curl film in chromed steel.

Z-frame with the 4 film grippers, vertical movement by gear motor

Central chain conveyor, with movement to allow use of different pallet sizes.

Outfeed Roller Conveyor

For transporting the filled pallet

Suitable for a pallet width up to 1200 mm

Conveyor length 1600 mm

Height 600 mm

Set of Safety

Light screen with muting bar at infeed and outfeed conveyor.

Mesh fencing around with one access door with safety switch.
