High-Level Palletizers

Brief Introduction：

High-level Palletizers use conveyors to stack bags / cartons / Boxes on tray (Plastic, Wooden or Steel Tray) at a fixed order. Whole system can palletize material at a higher speed and severe environment compared with Robot type.

Applied To: Any material packed by bags shape.

Bag Material: Bags.

Whatsapp：+86 15371056062

E-mail：sales@dostar-packing.com

Detail

GENERAL INTRODUTION

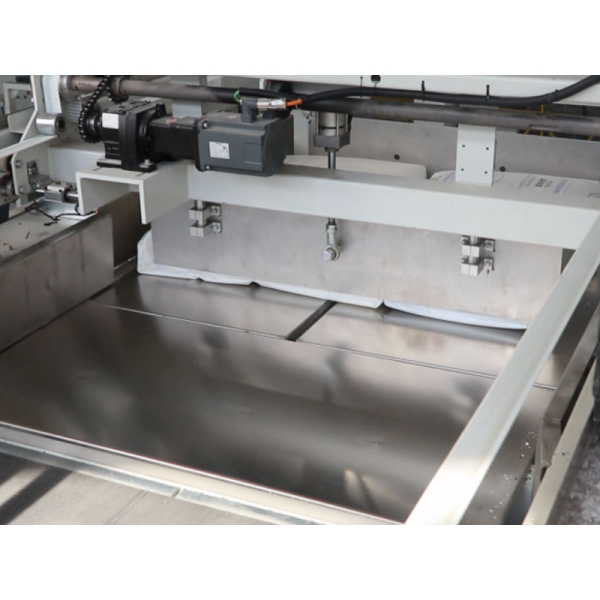

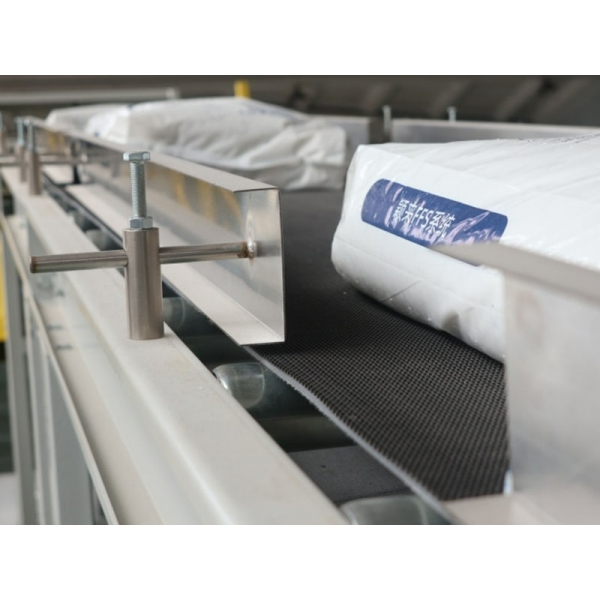

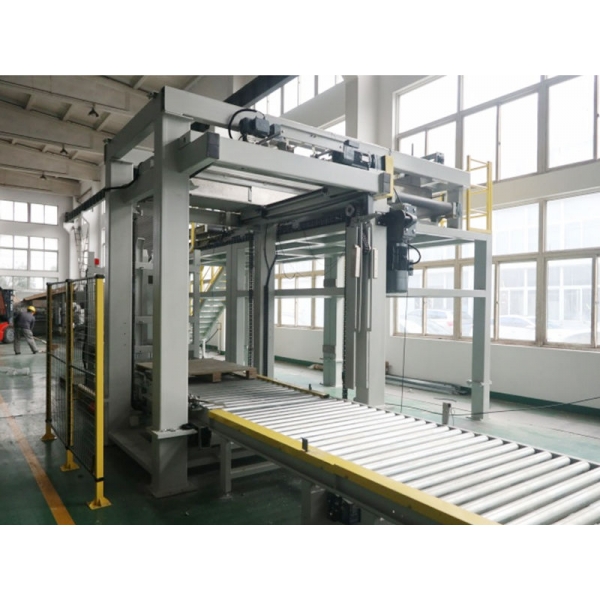

High-level palletizers are fed by a metering belt conveyor with items such as boxes, bags, or trays from the top of the machine; typically, seven to eight feet in the air. The operator platform is also located at the top of the machine and the machine’s entire perimeter is secured with hand rails. The products are arranged in the proper configuration in the row forming area and pushed onto the layer forming table. These layers are formed on an apron that opens over the hoist. The hoist is responsible for raising and lowering the pallet to allow the layers to stack on top of one another. Once the pallet load is completed, it is either picked up by forklift or moved away by conveyors.

WORKING PARAMETERS

Host highly integrated; simple and durable structure; Low noise; precise control, beautiful stack shape
Low failure rate, easy maintenance
Easy man-machine dialogue, all operations such as stack type can be completed on the control cabinet screen
High palletizing efficiency, two lines can share a host

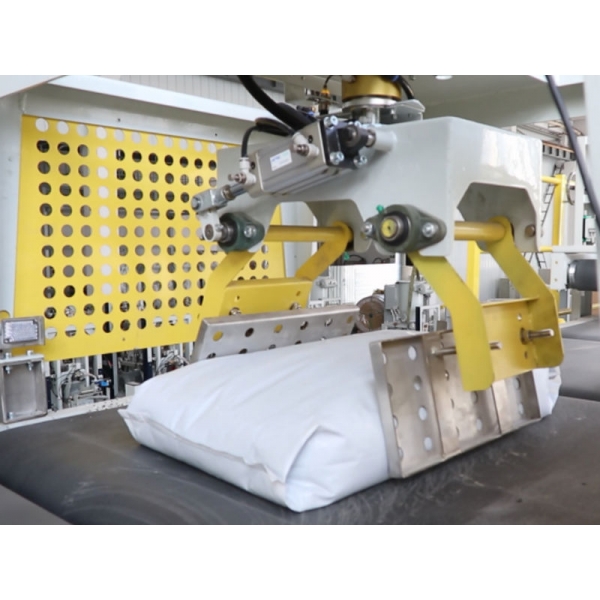

Adopt servo push bag technology, compatible with many shapes
Variable tray library design, compatible with 3 kinds of trays
Maximum palletizing speed: 2000 bags/hour
Suitable full-filled bag: 15~50kg
