Automatic Baggers For Granule

Brief Introduction：

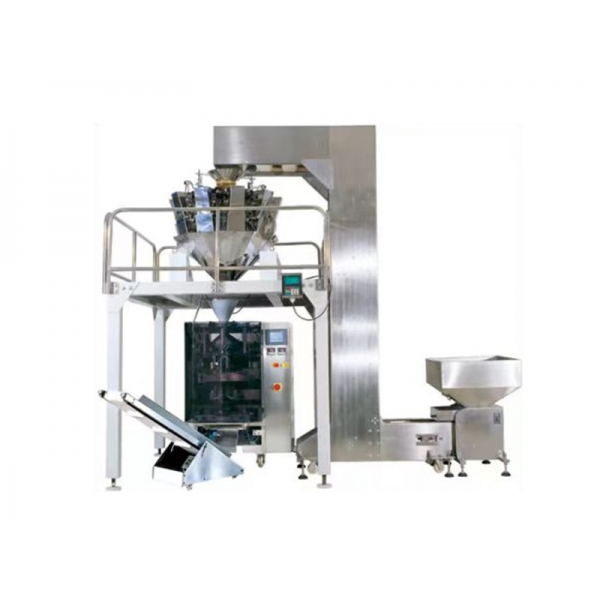

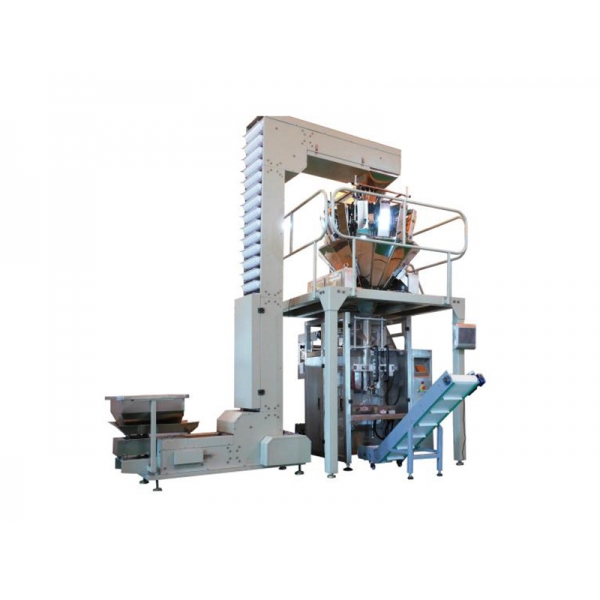

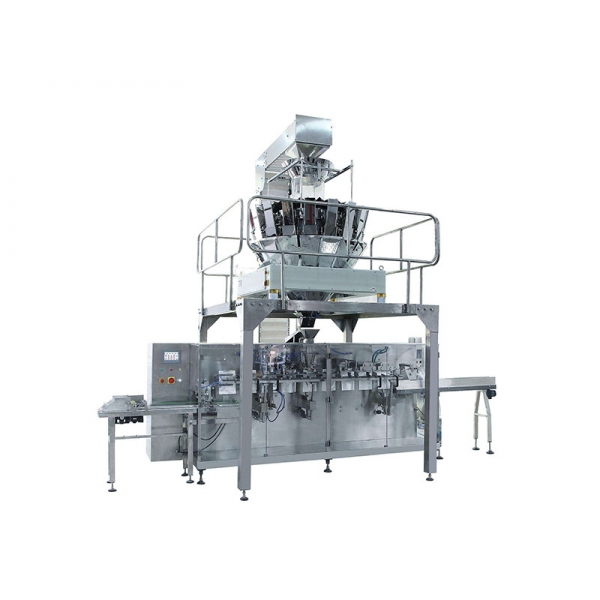

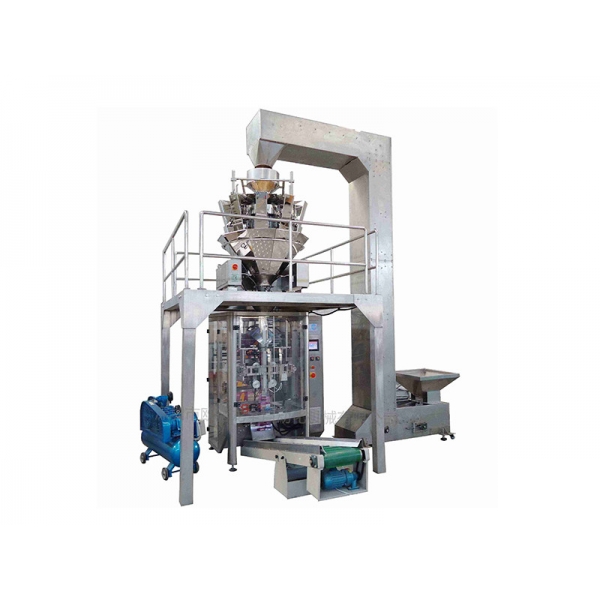

Automatic Baggers For Granule includes one set of filling machine (Multi-head weighers or Linear weighers), one set of bag maker (Pre-made bag given machine, VFFS or Horizontal Bag Feeder), also with lifting equipments like Z-elevator .

Applied To: rice, seeds, grains, plastic granule, coffee bean, animal feed, maize, corn, fertilizer, granulated sugar, salt, yeast, beans, candy etc.

Bag Material: PP & PE film roll, pre-made plastic bag (material must be air proof), zippered bag, stand-up bag etc.

Whatsapp：+86 15371056062

E-mail：sales@dostar-packing.com

Detail

General Introduction

An Automatic Bagger (0~5KG) is consisted of filling parts and bagging parts. The filling parts we usually using multi-head weighers or Linear weighers. And the bagging machine is vertical bagging machine (VFFS) or rotary bagging machine (Pre-made bags/Vertical Bagging Machine/Granule Bagging System).

WORKING PARAMETERS

Multi-head Weighers
We supply a full range of combination multi-head weighers suited to many food and non-food applications. All of them combine high-speed operation with unparalleled accuracy and reliability, and they can be installed as part of an integrated weighing and packing line or interfaced with existing packing equipment.

Stainless steel structure with IP65 grade of waterproof.
Touch screen interface for easy operating.
Double layer with memory weighing hoppers.
Driven by step motor.
99sets of parameters can be pre-saved.

Model	M10-V10	M10-V13	M10-V25	M14-V13	M14-V25
Header Nos.	10	10	10	14	14
Hopper Volume	1.0L	1.3L	2.5L	1.3L	2.5L
Weigh head Materia	SUS304, T=1.5mm	SUS304, T=1.5mm	SUS304, T=1.5mm	SUS304, T=1.5mm	SUS304, T=1.5mm
Touch screen	5.7”	10.4”	10.4”	10.4”	10.4”
Weigh range (once)	10-1000g	10-1500g	10-2000g	10-2500g	10-3000g
Weighing Speed	70times/min	70times/min	70times/min	120times/min	120times/min
Weighing accuracy	Level X(0.5),±0.5-2g	Level X(0.5),±0.5-2g	Level X(0.5),±0.5-2g	Level X(0.5),±0.5-2g	Level X(0.5),±0.5-2g

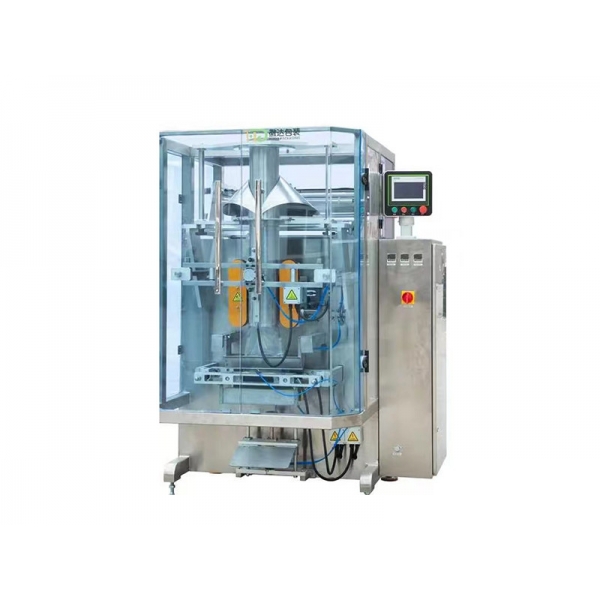

Vertical Packing Machine

Stainless steel frame
PLC controller with touch screen interface
Servo-driven film transport
Hot printer and film feeding system synchronous
Quickly changing one-piece bag former
Eye mark sensor for film tracking
Application: Loose solid material, such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed, sugar and salt etc. which shape is roll, slice and granule.

Model	VFFS-400	VFFS-500	VFFS-620	VFFS-800
Film width	160-400mm	180-500mm	220-620mm	340-800mm
Bag width	60-180mm	80-240mm	100-300mm	160-385mm
Bag length	100-300mm	100-300mm	100-380mm	100-480mm
Packing speed	15-60b/min	15-60b/min	15-60 b/min	10-30 b/min
Air requests	0.36m3/min, 0.6Mpa	0.36m3/min, 0.6Mpa	0.4m3/min, 0.6MPa	0.7m3/min, 0.6MPa
Power supply	220V, 50HZ, 3 Kw	220V, 50HZ, 3 Kw	220V, 50HZ,4 Kw	220V, 50HZ, 4.5 Kw
Weight	500kgs	550kgs	680kgs	980kgs
Outer dimension	1350x1060x1280mm	1550x1160x1480mm	1600x1260x1680mm	1600x1500x2050mm

Multi-stations Rotary Packing Machine

Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time. The part where touch to the materials is made of stainless steel and according with the request of GMP Security Device. No pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials. Machine stop at abnormal air pressure, heater disconnection alarm.

Model	CR8-200	CR8-250	CR8-300
Working position	Eight Locations
Bag material	Laminated film/PE/PP
Bag pattern	Stand-up with zipper, stand-up, flat bag
Bag size	W:100-210mm L:100-350mm	W:150-260mm L:150-350mm	W:200-300mm L:200-450mm
Speed	10-40bag/min	10-35bag/min	10-35bag/min
Voltage	380V 3phase 50HZ/60HZ
Power	6.5KW	7.5KW	8.5KW
Compress air	0.6m³/min
