Manual Granule Packing System

Brief Introduction：

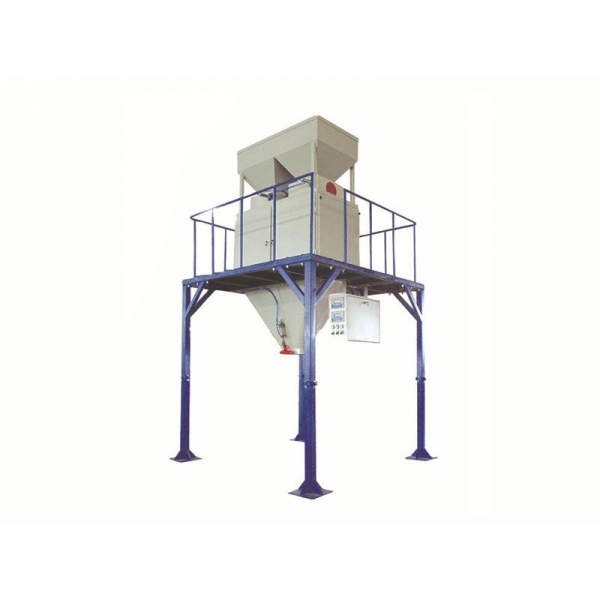

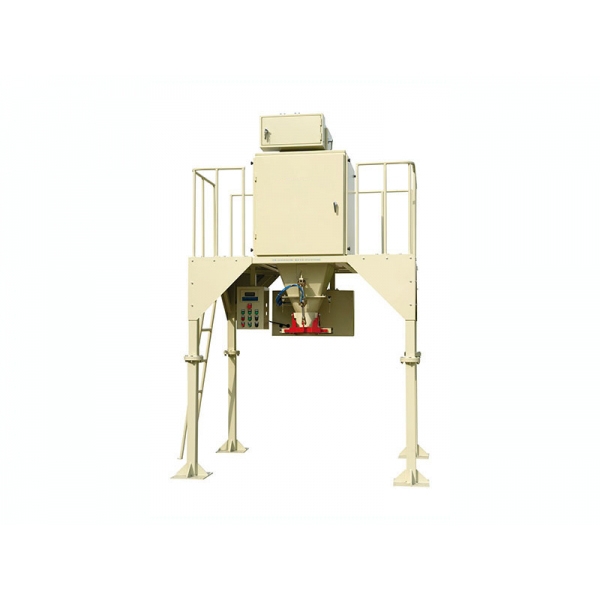

Manual Granule Packing System includes one set of DCS automatic quantitative filling machine, one set of belt conveyor, one set of sewing / heat sealer machine, used for weighing filling granules.

Applied To: rice, seeds, grains, plastic granule, coffee bean, animal feed, maize, corn, aginomoto, fertilizer, granulated sugar, salt, yeast, beans, amino acid, vitamin etc.

Bag Material: woven bag, jute bag, kraft paper sack, PE bag, PP bag, Nylon bag, cloth bag etc.

Whatsapp：+86 15371056062

E-mail：sales@dostar-packing.com

Detail

GENERAL INTRODUTION

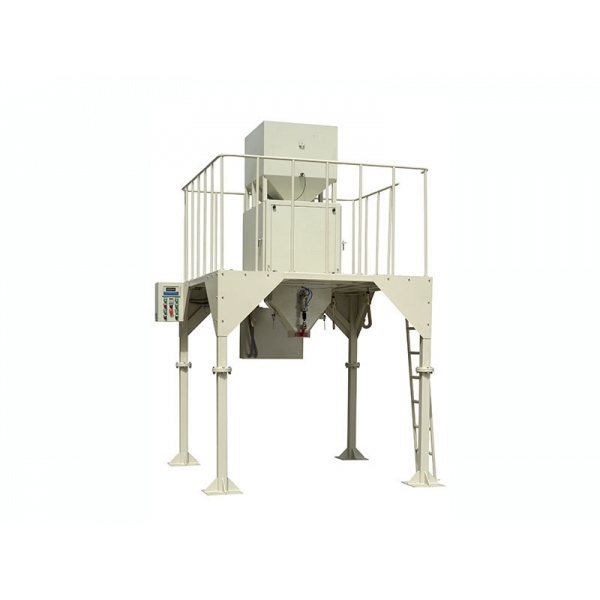

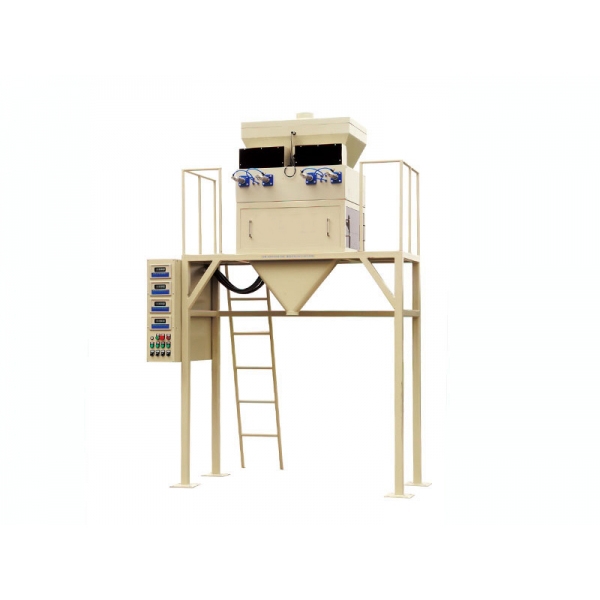

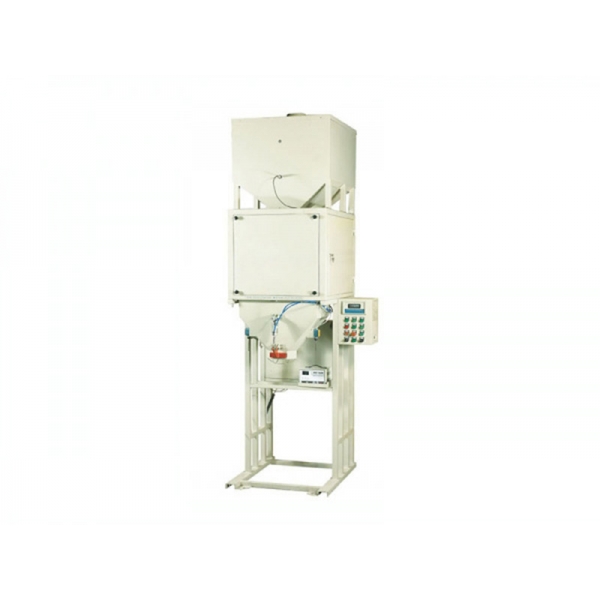

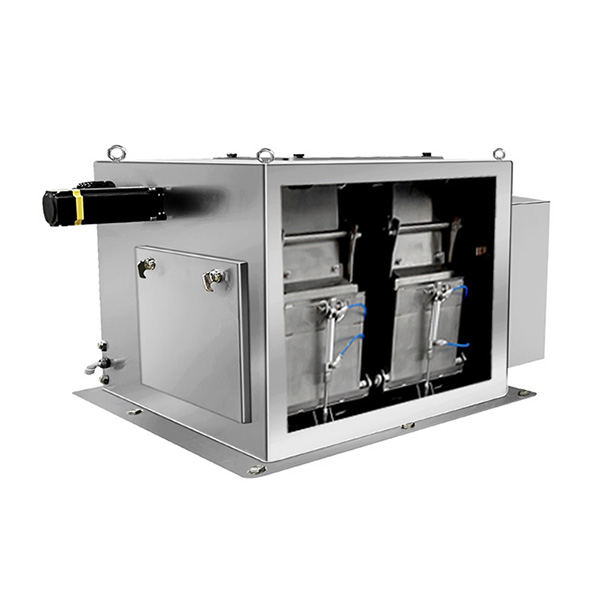

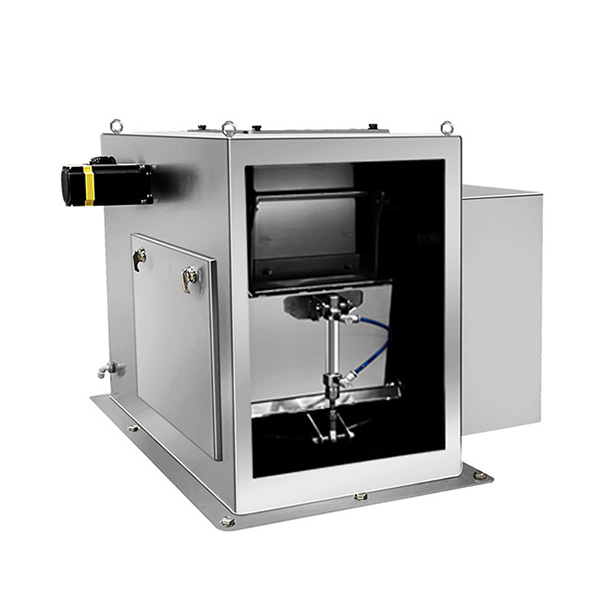

The DCS Series manual bagger with net weigher is a leading edge electronic net weighing system designed to be used as a bagging station in combination with bag clamps, a bag closing system and a conveyor. This is a popular low-cost solution and it can be equipped with various kinds of feeding devices to operate in a wide range of industries such as food, pet food, feed, seeds, chemicals, salt, and aggregates. (Filling Machine / Quantitative Filling Machine / Semi-auto Packing Machine/Filling Bagger/Manual Bagging Machine)

WORKING PARAMETERS

MODEL	FILLING RANGE	FILLING TIME/H	ACCURACY	FEEDING TYPE	MATERIAL SHAPE
DCS2Q-2	0.5~5KG	500~700	0.1%(FS)	Gravity+Vibration	Granular
DCS5Q-2	1~10KG	600~800	0.1%(FS)	Gravity+Vibration	Granular
DCS5SE	0.25~5KG	800~1000	0.1%(FS)	Servo Motor	Granular
DCS5SE-2	0.25~5KG	1000~1600	0.1%(FS)	Servo Motor	Granular
DCS10SE	0.5~10KG	800~1000	0.1%(FS)	Servo Motor	Granular
DCS10SE-2	0.5~10KG	1000~1600	0.1%(FS)	Servo Motor	Granular
DCS25Q	10~25KG	300~500	0.2%(FS)	Gravity+Vibration	Granular
DCS25Q-2	10~50KG	500~800	0.2%(FS)	Gravity+Vibration	Granular
DCS25SE	5~25KG	800~1000	0.1%(FS)	Servo Motor	Granular
DCS25SE-2	5~25KG	1000~1600	0.1%(FS)	Servo Motor	Granular
DCS50S	20~50KG	300~500	0.2%(FS)	Cylinder Gravity	Granular
DCS50S-2	20-50KG	500~700	0.2%(FS)	Cylinder Gravity	Granular
DCS50SE	10~50KG	700~900	0.1%(FS)	Servo Motor	Granular
DCS50SE-2	10~50KG	900~1500	0.1%(FS)	Servo Motor	Granular
Application: Granules, Powders, Pellets, Fibers, Flakes, and coarse aggregates
Bag Type: Pillow, Gusseted, and Gusseted Flat Bottom

FEATURES

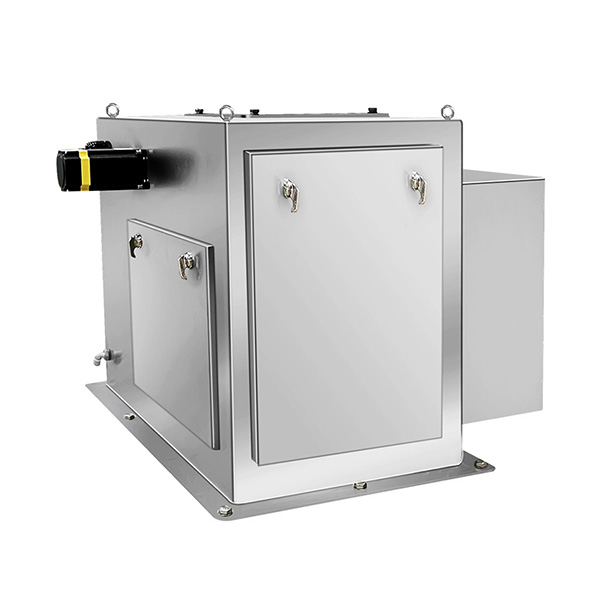

Choice of pneumatic or high output servo motor-controlled gravity catch gates;
Simple construction and sturdy design for long-term reliability;
User-friendly weigher controller;

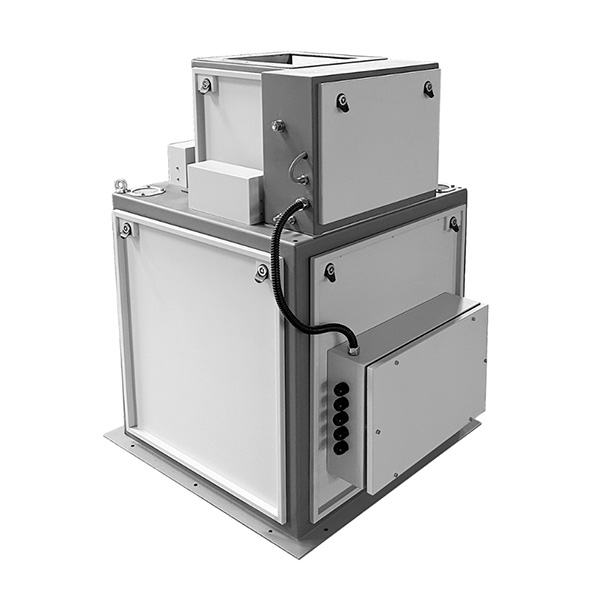

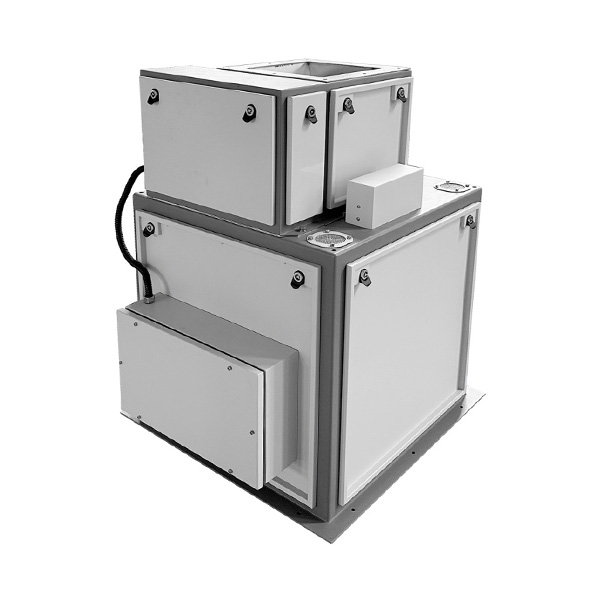

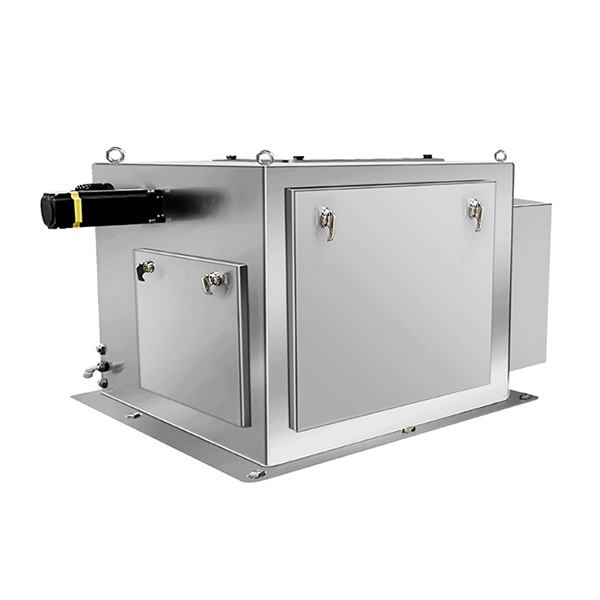

Enclosed design with removable doors providing easy access into the machine;

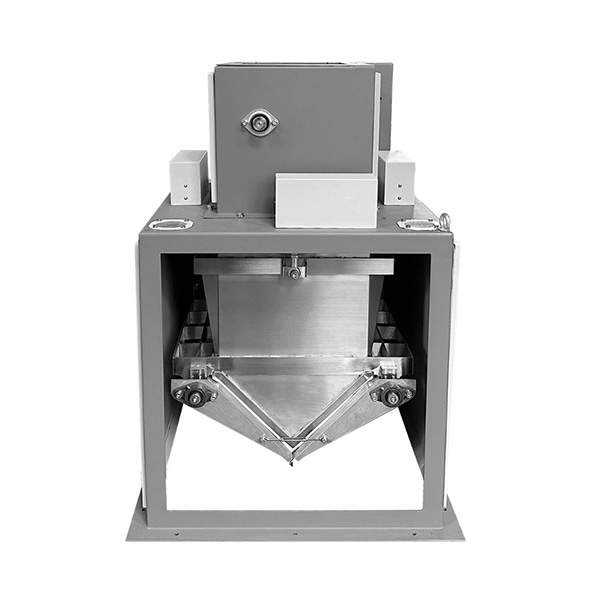

Weigh hopper directly suspended from three strain-gauge load cells;
Quick connection junction box, valve manifold and sensors allowing quick installation and easy maintenance

OTHER OPTIONS

Choice of round dust-tight manual bag holding system for dusty applications;
Bird-beak bag holding system for fast placement of empty bags;
Diverse range of feeding devices: gravity, gravity-agitator, belt, screw and vibratory feeder;
