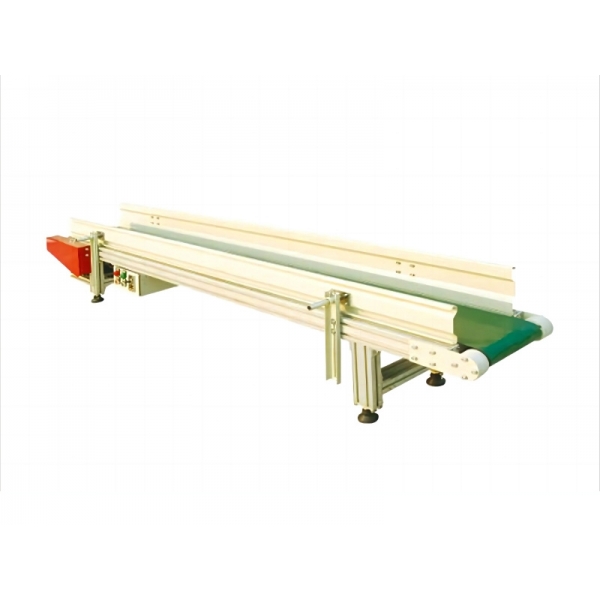

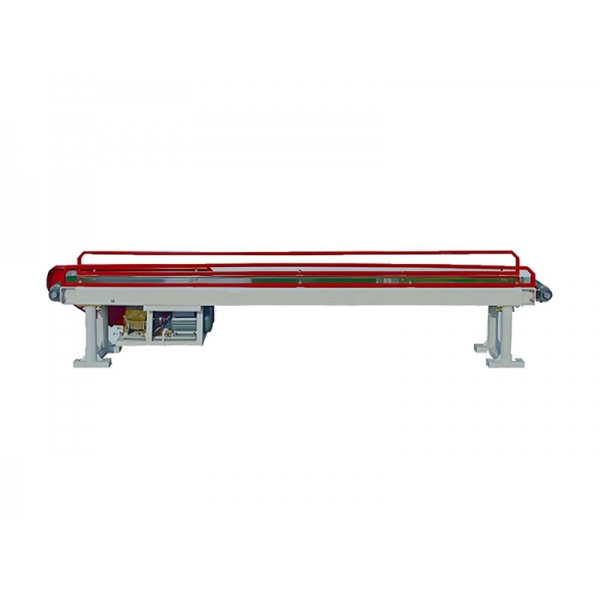

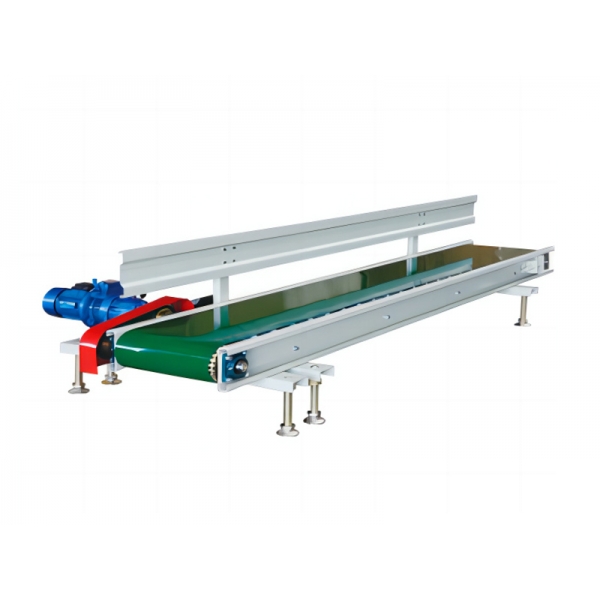

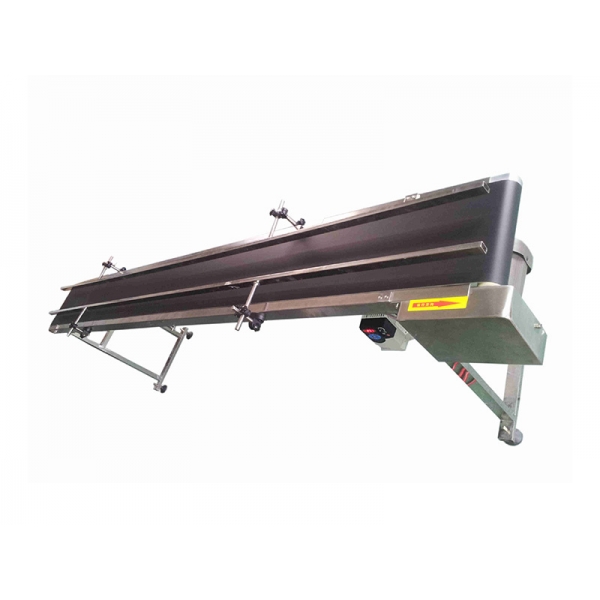

Conveyors

Brief Introduction: Conveyor is used to support bag weight during bag sewing or sealing operation. Bag drops from customer’s scale onto conveyor and moves toward sewing station. Just before reaching sewing station infeed, bag trips a feather switch that stops conveyor motion.
Applied To: For supporting fulfilled bags.

Whatsapp：+86 15371056062

E-mail：sales@dostar-packing.com

Detail

GENERAL INTRODUTION

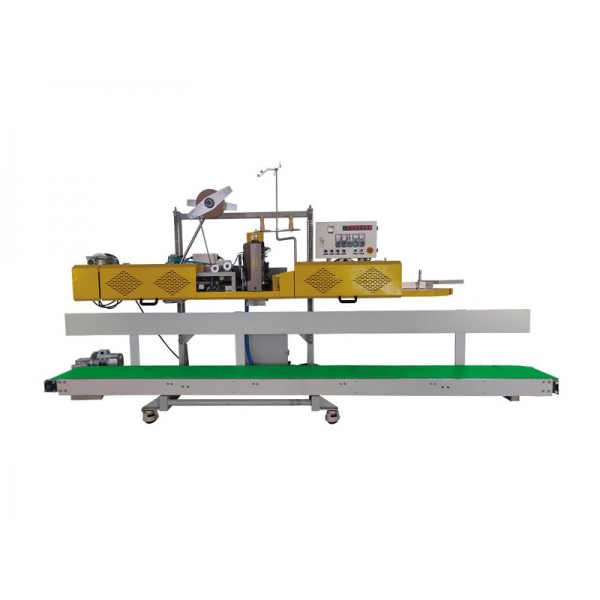

Belt Conveyors working with sewing/stitching machine or sealing machine makes bag closing system. ()

WORKING PARAMETERS

MODEL	BELT WIDTH (MM)	LENGTH(MM)	HEIGHT(MM)	POWER(KW)	SPEED REGULATION	BELT SPEED(M/MIN)	LOAD(KG/M)
PD3	275	3000	370~710	0.75	STEP	7.5/10	MAX.100
PD3B	275	3000	250~350	0.75	STEPLESS	5~25	MAX.100
PD3C	400	3000	250~350	1.1	STEP	10	MAX.150
PD3E	400	3000	250~350	0.75	STEPLESS	5~25	MAX.150
PD3F	400	4000	250~350	1.1	STEP	10	MAX.150
PD3G	400	6000	250~350	1.5	STEPLESS	5~25	MAX.150
PD4	180	2600	400	0.55	STEP	7.5/10	MAX.60
PD10	240	2000	350~550	0.37	STEPLESS	3.5~18	MAX.60
