GENERAL INTRODUTION

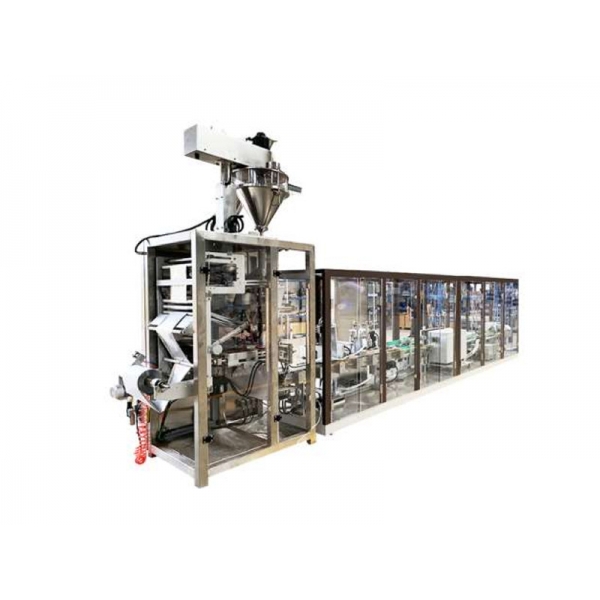

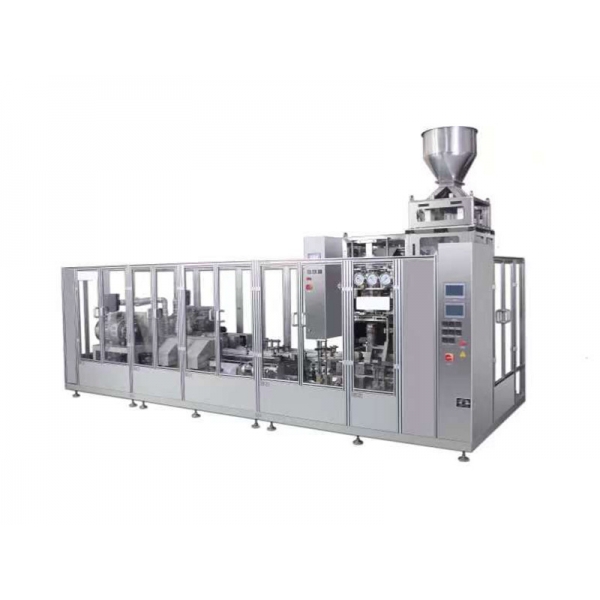

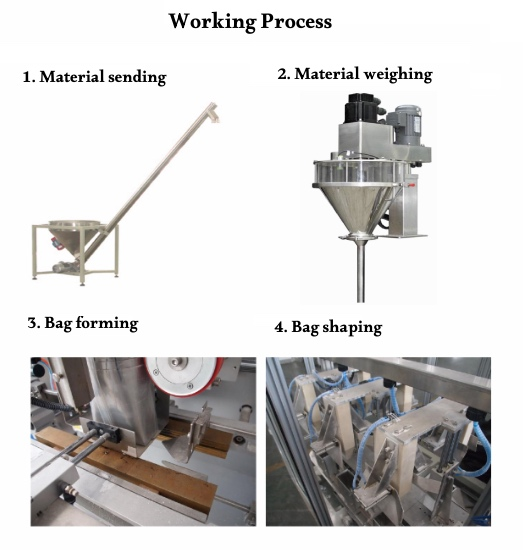

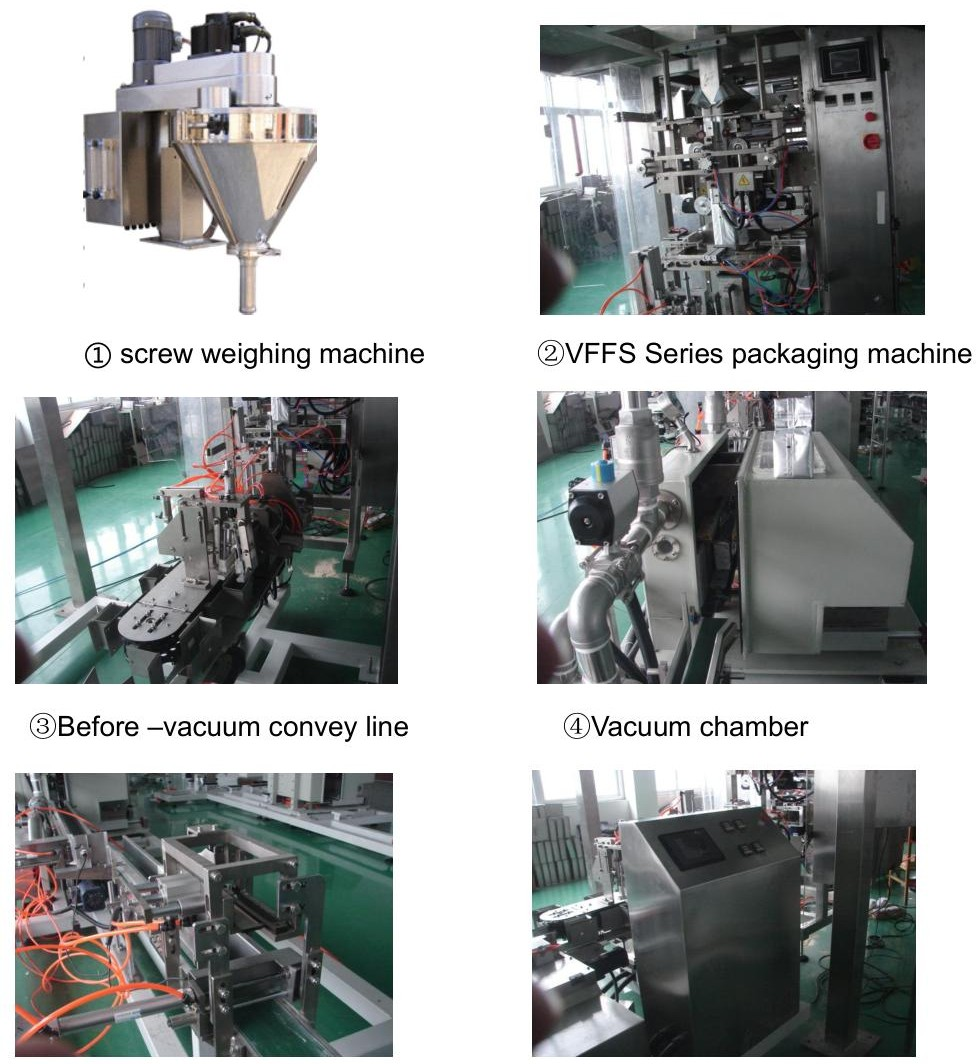

DCS5000-VAC professionally packs products into vacuum state and brick shape. It cooperates with vertical filling or granular feeders and sealing machine to complete automatic bagging line, which consists of screw loading conveyor with vibrating hopper feeder, screw filling metering system, automatic bag making machine with date printing unit and vacuum brick making machine composition. The packaging bag has high sealing quality, long storage time and beautiful appearance. Advanced vibration, pressing, reforming, vacuuming, sealing, cutting, leveling, conveying and other main processing procedures make the bag shape beautiful and the vacuum degree suitable. (Vacuum Packing Machine/Vacuum Bagger/Vacuum VFFS)

FEATURES

• This machine integrates the functions of bag-making, filling, printing, shaping , vacuum, sealing, punching and counting
• Adopts servo motor for film pulling with automatic offset correction. There are two types of longitudinal sealing mechanism, i.e. center sealing type and platen press type (the user can choose according to specific material and the film roll).
• The machine has good sealing performance and can meet customer’s hygienic requirements.
• All the electrical components and control components adopt local and foreign well-known brands with reliable performance; man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.

WORKING PARAMETERS

Packaging weight: 100-5000g
Packing speed: 15-20 packs / min.
Machine Size: 8800*3800*4080
Power: AC 380V,50Hz, 20kw
Air: 0.7Mpa 1.1m3/min
Film roll core dia: 75mm
Weight: 2500kg
Film material: Laminated film (PP/PE/PA/ALU/PET, please note PA is necessary inside, cause it could keep the vacuumed bag keep shaped )

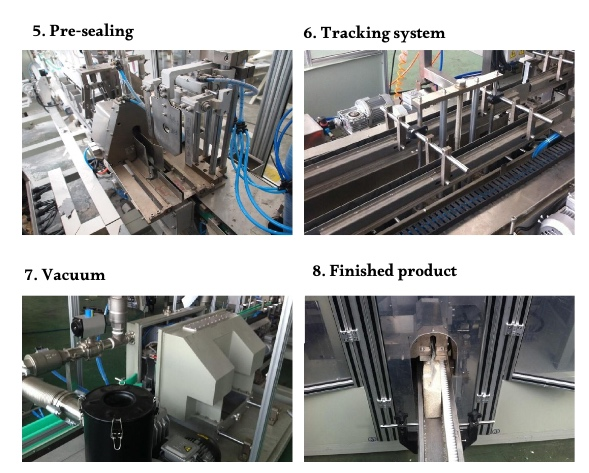

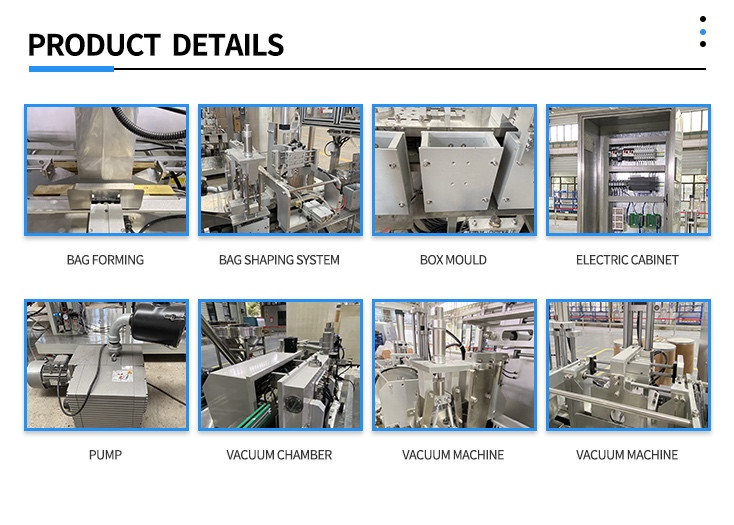

DETAILS

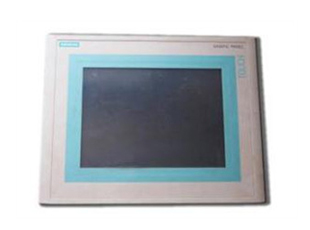

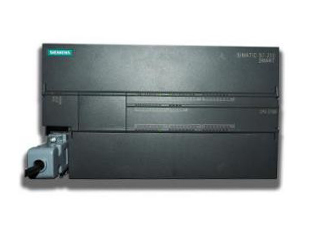

SIEMENS PLC		SIEMENS TOUCHSCREEM

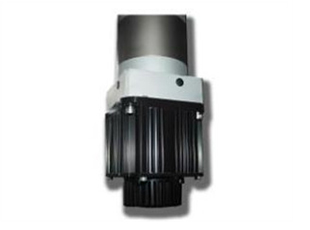

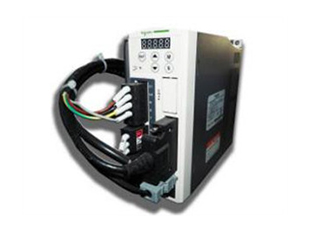

PANASONIC DIRVER		PANASONIC MOTOR

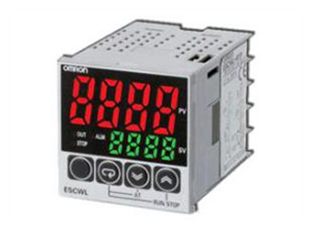

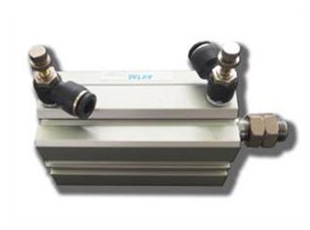

AIRTEC AIR CYLINDER		OMRON TEMP CONTROL

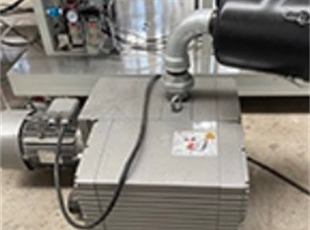

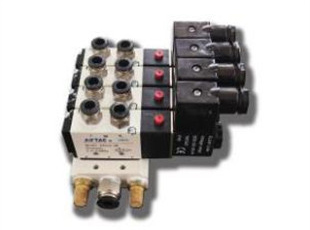

AIRTEC ELECTROVALVE		BECKER VACUUM PUMP

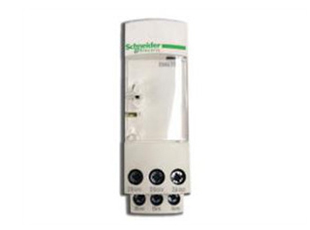

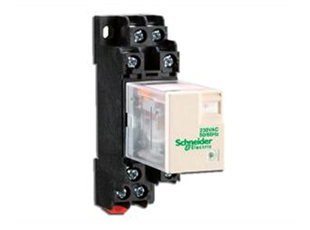

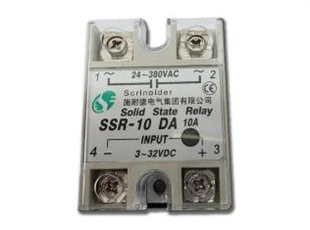

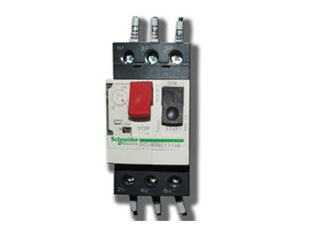

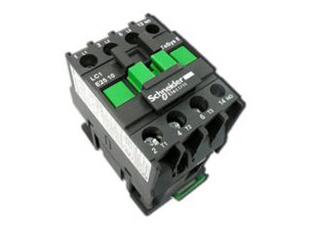

SCHNEIDER ELECTRIC PARTS
