Automatic Baggers For Powder

Brief Introduction：

Automatic Baggers For Powder includes one set of powder filling machine (Vertical screw feeder), one set of bag maker (Pre-made bag given machine, VFFS or Horizontal Bag Feeder), also with lifting equipments like filling screw.

Applied To: flour, food additives, carbon dust, fire extinguisher dry chemicals, graphene, albumen powder, milk power, facial mask powder, milk-tea powder etc.

Bag Material: PP & PE film roll, pre-made plastic bag (material must be air proof), zippered bag, stand-up bag etc.

Whatsapp：+86 15371056062

E-mail：sales@dostar-packing.com

Detail

General Introduction

Automatic baggers for powder is combination of auger filling device and bagging machine for solving the powder packing dilemma. This system can be divided into dosing filling and packing units. Dosing device is in servo motor auger filling units and packing device is in VFFS bagging machine (fill roll) or Multiple-stations rotary machine (Pre-made bags). With its popular low-cost solution, it can be operated in a wide range of industries such as food, medicine, cosmetics and chemical. (Powder filling machine/Vertical powder packing machine/Powder bagging machine/Powder Bagging Machine)

WORKING PARAMETERS
Auger Filling

This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.

Model	B2-1L	B2-10L	B3-1L	B3-10L
Hopper	Quick disconnecting hopper 25L	Quick disconnecting hopper 50L	Quick disconnecting hopper 50L	Quick disconnecting hopper 50L
Packing Weight	1-500g	10-5000g	1-500g	10-5000g
Packing accuracy	≤ 100g, ≤±2%; 100 – 500g, ≤±1%	≤ 100g,≤±2%; 100 – 500g,≤±1%;≥500g,≤±0.5%	<100g,≤±1-2%; 100-500g, ≤±1%;	100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2%
Filling Speed	40 - 120 times/min	40 - 120 times/min	8 - 15 times/min	5 - 12 times/min
Power Supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Total Power	0.93 Kw	1.4Kw	0.93 Kw	1.4Kw

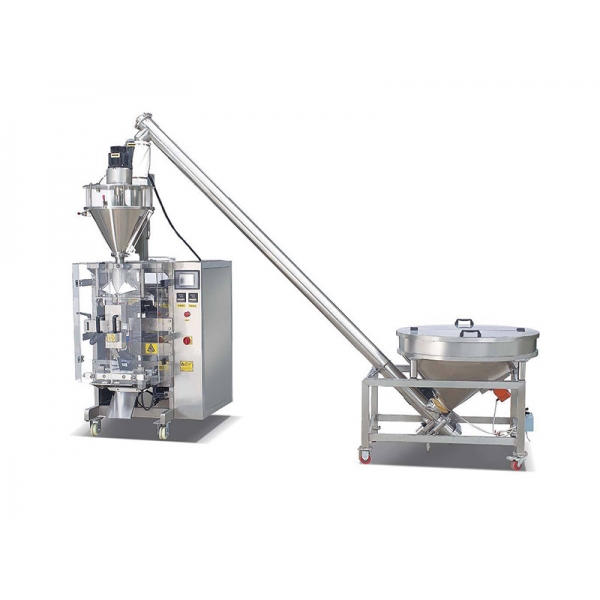

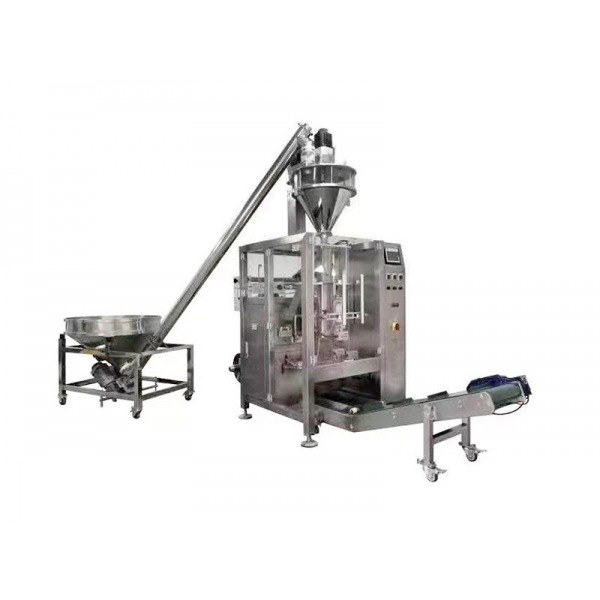

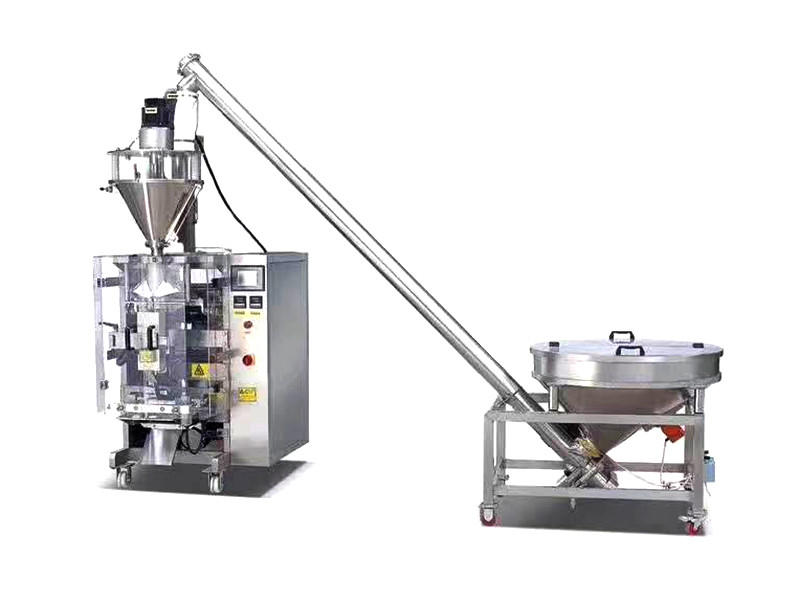

Vertical Packing Machine

Use intelligent temperature controlling machines to have accurate temperature control ensure the artistic and neat seal. Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize the whole machine’s control precision, reliability and intelligentized level. Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing. Have error indicating system, helping to handle the trouble immediately. Make block bags and hanging bags according to customers’ different requires.

Model	QL-420L	QL-520L	QL-620L
Dosing mode	Servo Auger	Servo Auger	Servo Auger
Bag Sizes	L:80-300mm；W:80-200mm	L:100-320mm W 100-250mm	L:100-450mm W 100-300mm
Packing Speed	25 – 80 bags/min	25-70 bags/min	25-60 bags/min
Total Power	4.7kw	4.4kw	5.4kw
Air Supply	6kg/m2 , 0.2m3/min	6kg/m2 , 0.25m3/min	6kg/m2 , 0.3m3/min

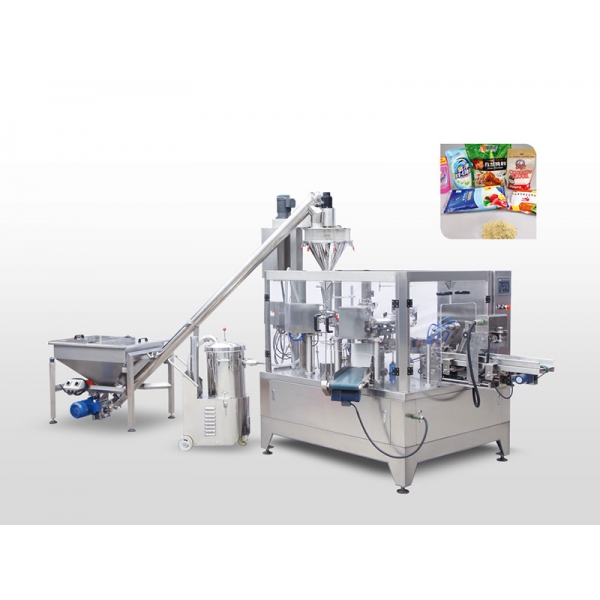

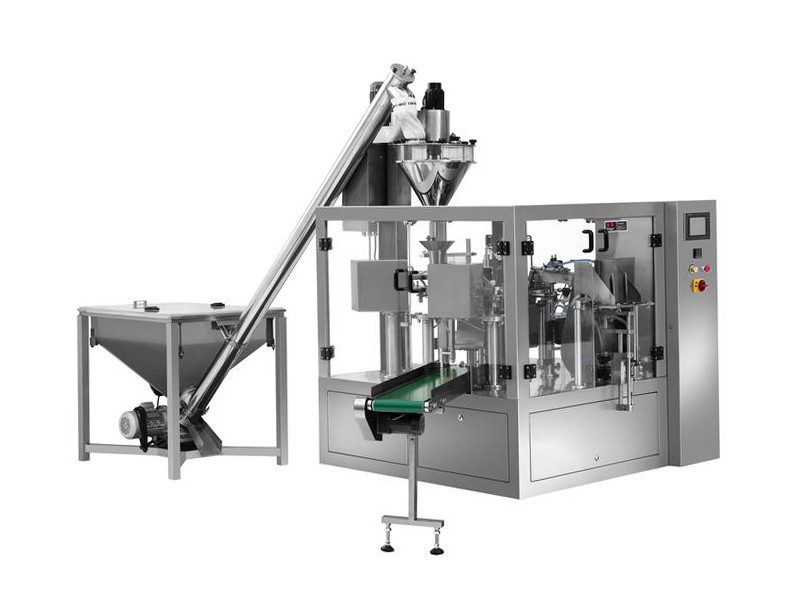

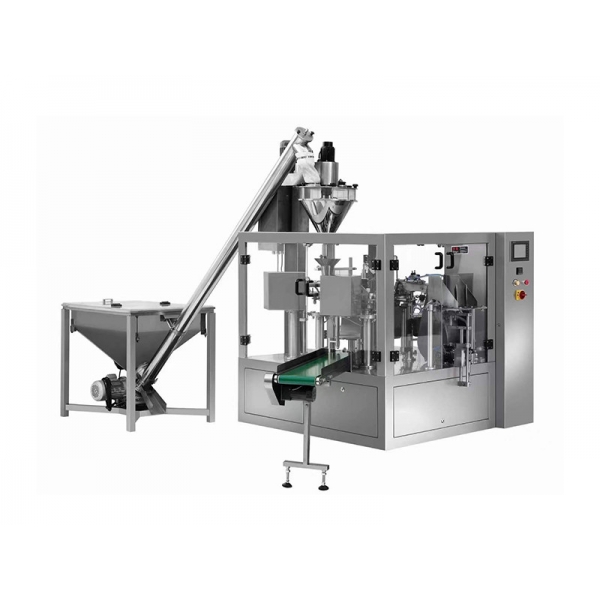

Multiple-stations Rotary Machine

The powder packing machine is suitable for powder material, such as milk powder, flour, coffee powder, seasoning, additive, chemical supplies and other powder material automatic packing.

Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
The part where touch to the materials is made of stainless steel and according with the request of GMP.

Working position	Eight-working position
Bag material	Laminated film/pe/pp
Bag pattern	Stand-up with zipper & spout, stand-up, flat bag
Max filling weight	5000g
Filling accuracy	Depends by feeder
Bag size	W:100-200mm L：100-350mm
Speed	10-60bags/min
Voltage	380V 3P 50/60HZ （Can be customized）
Total power	5.5KW
