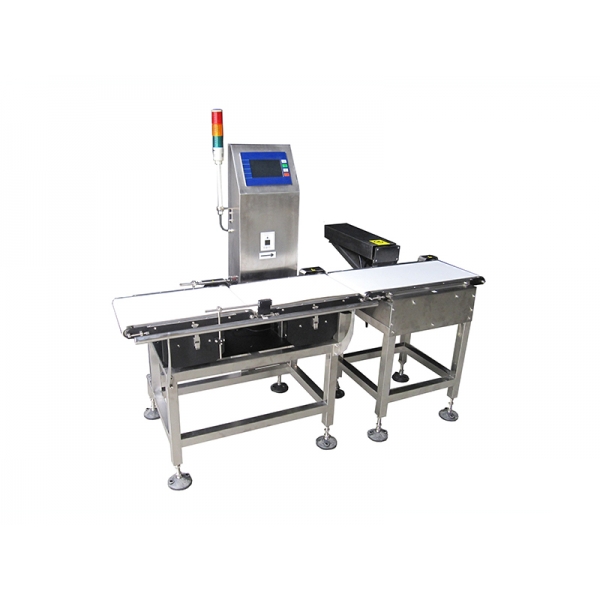

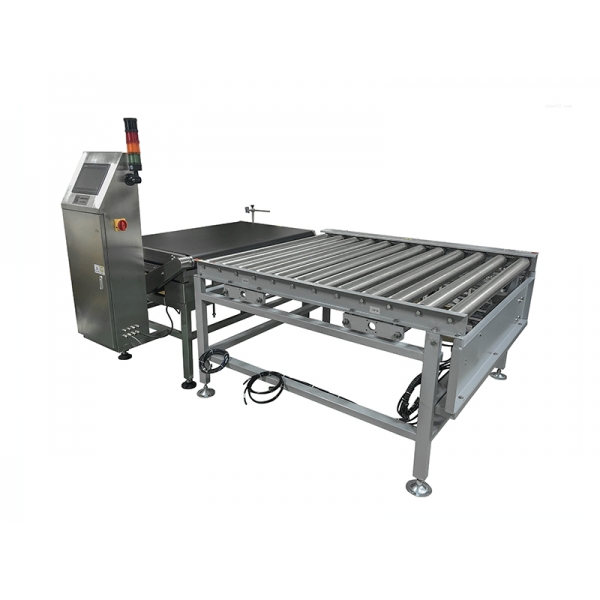

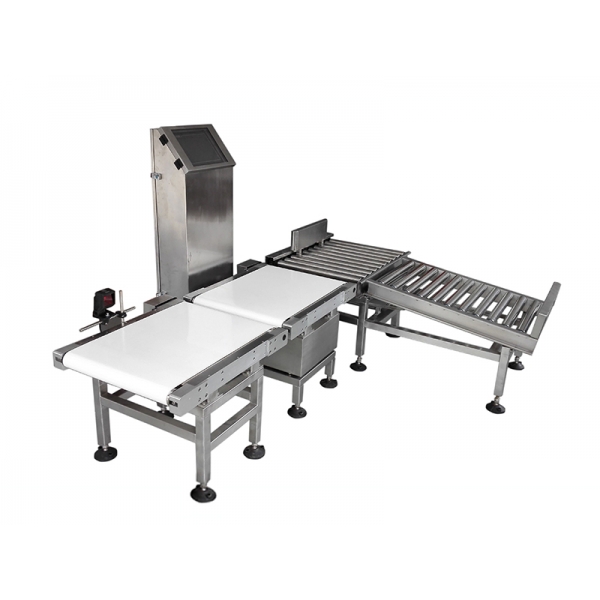

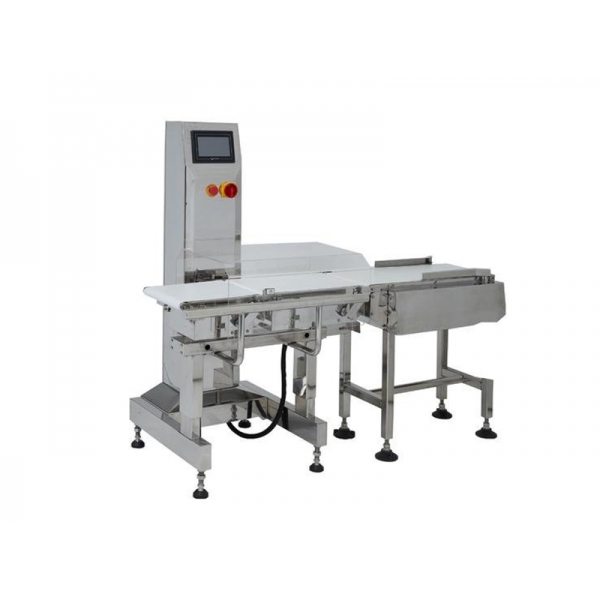

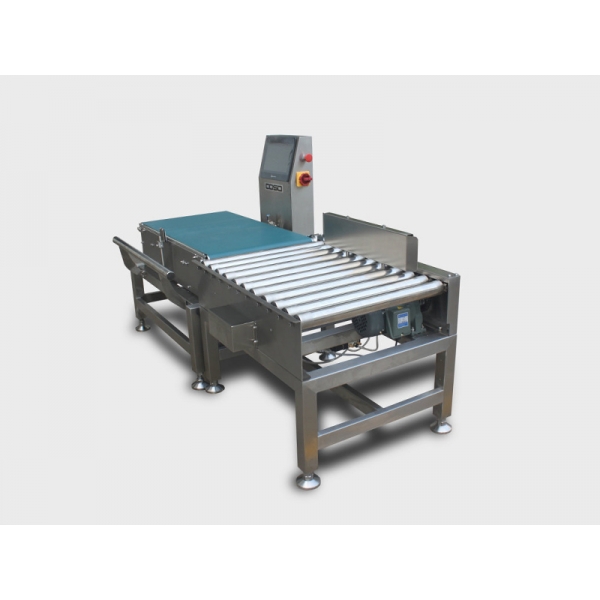

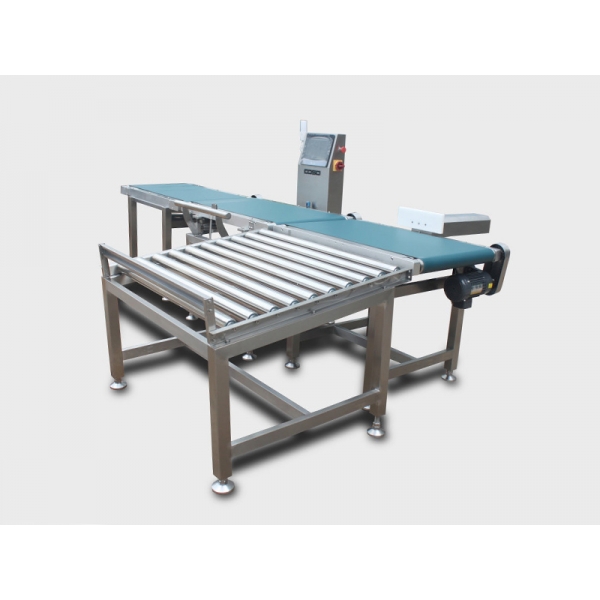

Weight Checker can check packed products’ weight online whether their weights are overweight or less-weight to ensure the weight of products to meet standards. Weight checker is automatic device that used to check the products’ weight in automatic packing production lines, and it can check products in a continuous working process which weight accords with the standard weight we set or not. Also, the checker can automatically reject unqualified products. (Checkweigher/Weight Detection)

WORKING PARAMETERS

MODEL	DWC5K	DWC50K
WEIGHT RANGE	≤5000G	≤50KG
DIVISION VALUE	0.1g	0.1g
ACCURACY	±0.5-3g	±5-20g
SPEED	0-70m/m	0-50m/m
PRODUCTS’SIZE	300*270MM	650*530
POWDER	AC220V/110V ± 10% 50/60Hz 0.4KW
REJECTION	Air Blowing/Pusher/Swing Arm/Flap/Sinking Conveyor Rejection
OPERATION PANNEL	TOUCH SCREEN
WE ACCEPT OEM REQUEST

FEATURES

•Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra-fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
•Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
