Manual Baggers

Mobile Manual Packing System

Brief Introduction:

Mobile Manual Packing System is most popular used in sea port, lake port and inland port.  Whole system includes one set of DCS quantitative filling machine (powder or granule), one set of belt conveyor, one set of sewing machine, also with dust removal system.

Applied To: rice, seeds, grains, plastic granule, coffee bean, animal feed, maize, corn, fertilizer, granulated sugar, salt, yeast, beans, flour, carbon dust, fire extinguisher dry chemicals, graphene, albumen powder, milk power, facial mask powder, milk-tea powder etc.

Bag Material: woven bag, jute bag, kraft paper sack, aluminum foil bag, PE bag, PP bag, Nylon bag, cloth bag etc.

Whatsapp:+86 15371056062
E-mail:sales@dostar-packing.com

Detail




GENERAL INTRODUTION

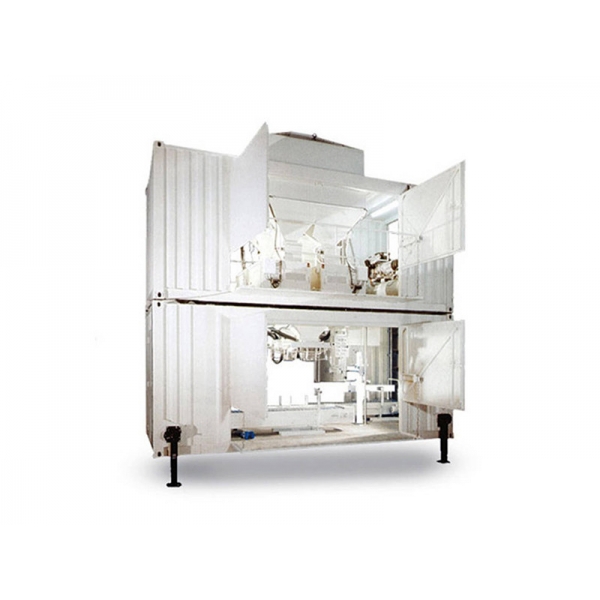

Mobile Bagging Machine is a bagging system that can be easily transported and provides operational flexibility, resulting in a quick return on investment. The bagging system consists of two International Standard 20 Feet shipping containers, which have side openings, flooring, and support members. It also includes reliable Reed Medway weighing and bagging equipment. The top container contains material hoppers and weighing units, while the bottom container has discharge chutes, bag holders, sewing heads, and conveyors. With the ability to be moved on-site or from site-to-site, this system can bag up to bulk materials 120 ton/h at the right time and in the right place, whether the materials are delivered or already stockpiled. (Port Baggers/Port Filling Machine/Container Filling Machine/Port Container Filling Machine/Port Use Packing Machine/Movable Packing System/Mobile Bagging Machine/Container Bagging Machine/Big Bag Filling Machine)



WORKING PARAMETERS

  • Mobile Manual Bagger comes in 2 models to suit your specific needs.
  • MD-1000 Two weighing units with one sewing line
  • MT-2000 Four weighing units with two sewing lines
  • Speed: up to 40 bags per minute
  • Bulk Materials: coarse aggregates, flakes, granules, pellets, powders
  • Bag Types: gusseted, gusseted flat bottom, pillow-type
  • Typical footprint: 3226 mm x 1778 mm x 4318 mm
  • Electrical requirement: 380 V / 3Ph / 50 Hz (other voltages available)
  • Operating temperature: 5 °C to 35 °C


FEATURES

  • Versatile: Manual leveling jacks for stability during operation; Units supplied with plug and socket connections for site electrical and compressed air supplies; Integral lighting in upper and lower containers for 24-hour operations
  • Cost Efficient: Faster shipping and rolling stock turnover times reduce costs; Lower risk of demurrage and wharf age fees
  • Design Quality: Reed Medway weighing and bagging equipment; Designed to run with minimal maintenance in extreme environmental conditions


OTHER OPTIONS

  • Wheel assemblies and tow bar can be fitted to lower container for easier movement;
  • Air compressor and/or alternator set for total independent operation;
  • Material contact parts for optimal equipment longevity
  • Magnetic grid separators to remove steel impurities
