Online Wrapper

Brief Introduction：

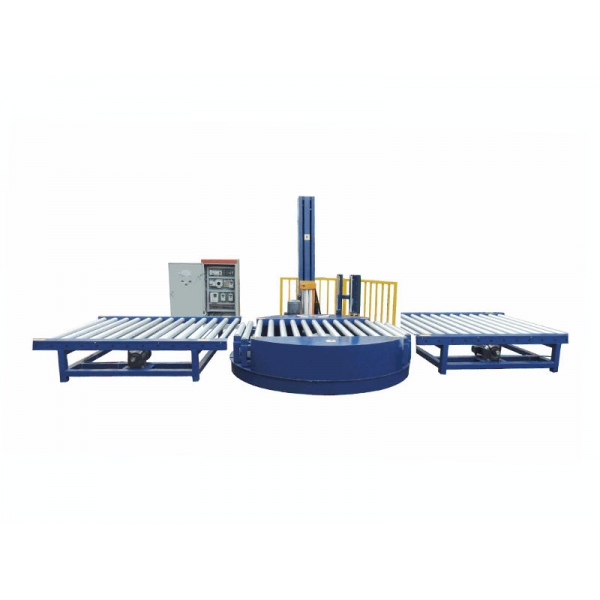

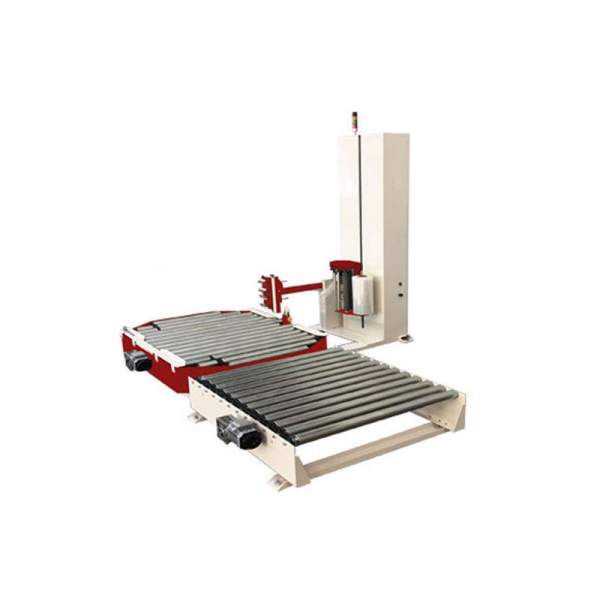

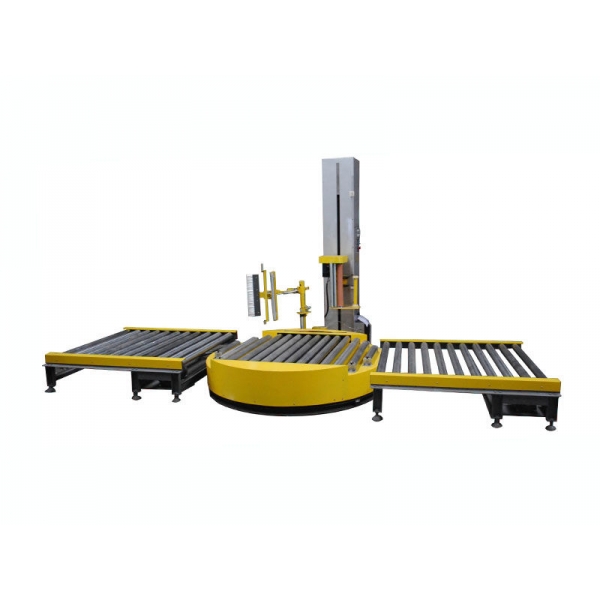

On-line Wrapper stretch wrapper machines are the conveyorized turntable pallet stretch wrappers. The wrapping machines have the motor drive roller table or chain conveyors built on the turntable. Wrappers are the best options for the large factories with large capacity, as they can install on the workshop and connected with their systems of production. Very efficient wrapping process if the pallets keep the similar dimension and come with pace.

Applied To: Any material packed by Pallet, bags, cartons, cases & bundle.

Whatsapp：+86 15371056062

E-mail：sales@dostar-packing.com

Detail

GENERAL INTRODUTION

Output wrapping capacity of 15-40 pallets per hour; Fast replacement of wrapping film, saving consumption; Modular design, upgrade at any time according to demand; Intuitive and easy to understand operation interface; Large bearing weight, the standard bearing capacity of 2 tons; Equipment can accept customer's customized requirements;

WORKING PARAMETERS

DESCRIPTION	PARAMETERS
Roller Length (mm)	1100/1250/1300mm/ Customizable
Table Rotation Diameter	2130(Lr=1100)/2200(Lr=1300) mm/ Customizable
Load Weight Max.	1500/2000/2500kg/ Customizable
Wrapping Speed	5-20 Rolls/hour
Vertical Movement Speed	2.5-7m/min
Film Tension	Adjustable
Film Pre-stretch	125~400%
Max. Pallet Dimensions	L1000~1300*W1000~1300mm/ Customizable
Maximum Pallet Carriage Height	2200/2400/2700/3000mm/ Customizable
Turn Plate Height	350~650mm/ Customizable
Power Supply	110/220/380V 50/60HZ
Weight of Film Reel	15/20/25Kg
Film Thickness	17~35um
Power	2.5/3.0/3.5/4.0Kw
ONLINE WRAPPER usually works with the whole packaging line and the control system can be integrated to the main control system. Also, we welcome oversized wrapping machine OEM.
