Brief Introduction：

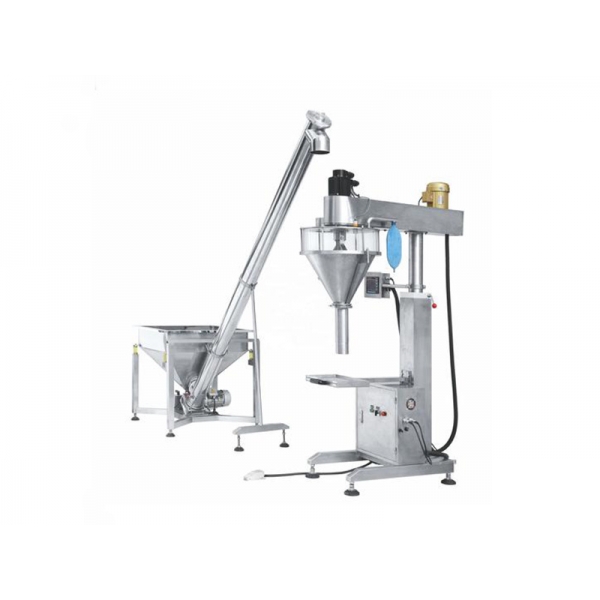

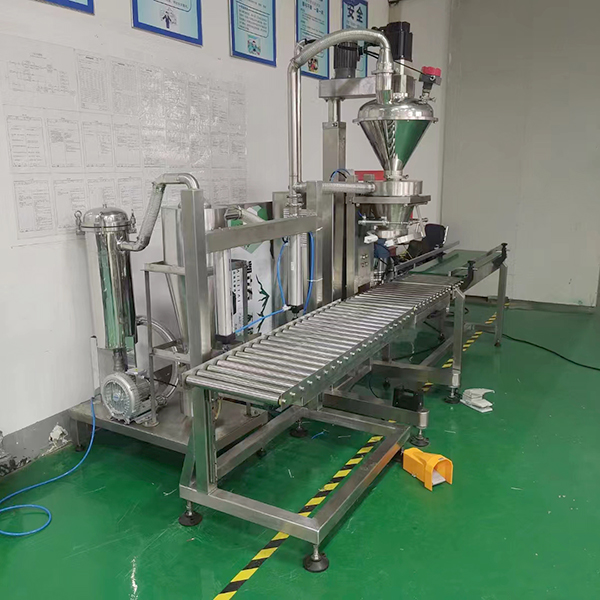

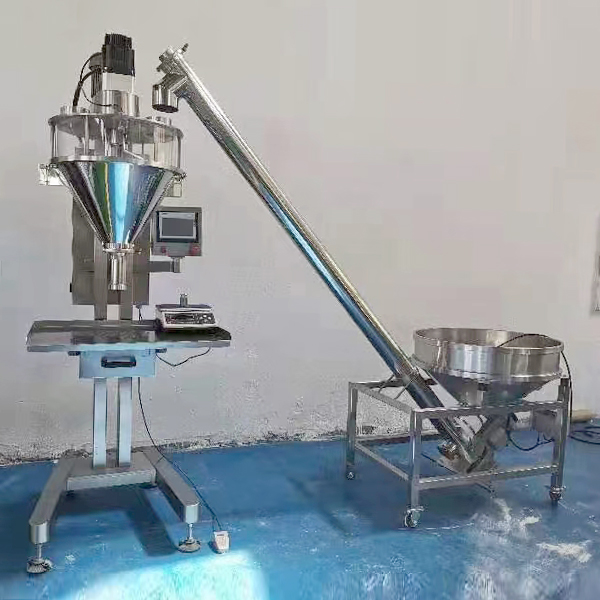

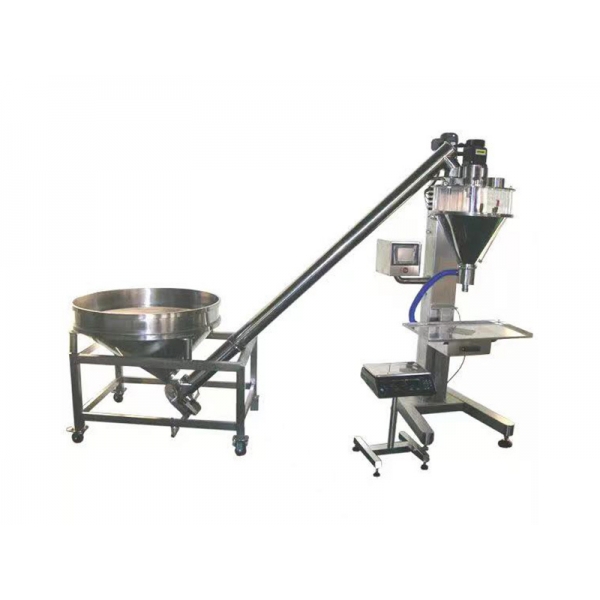

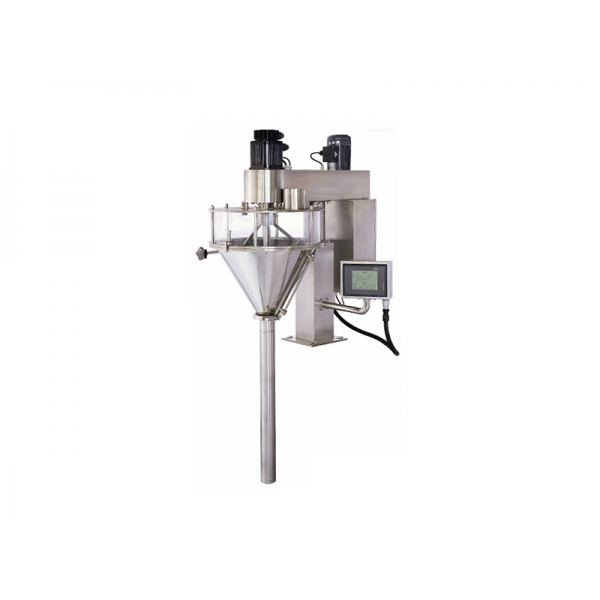

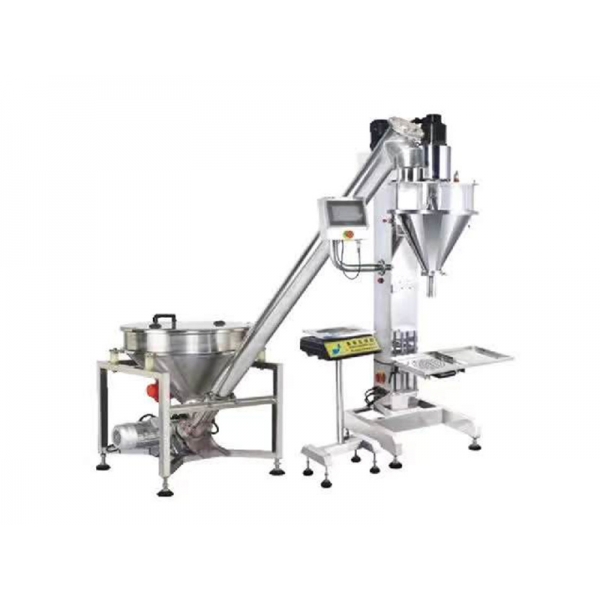

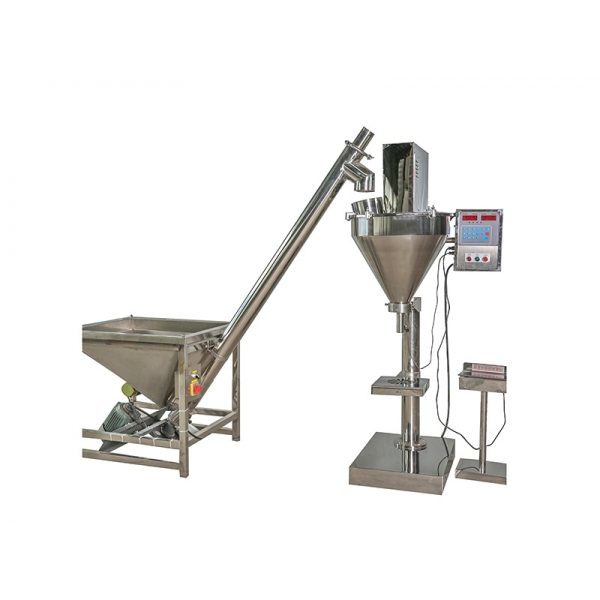

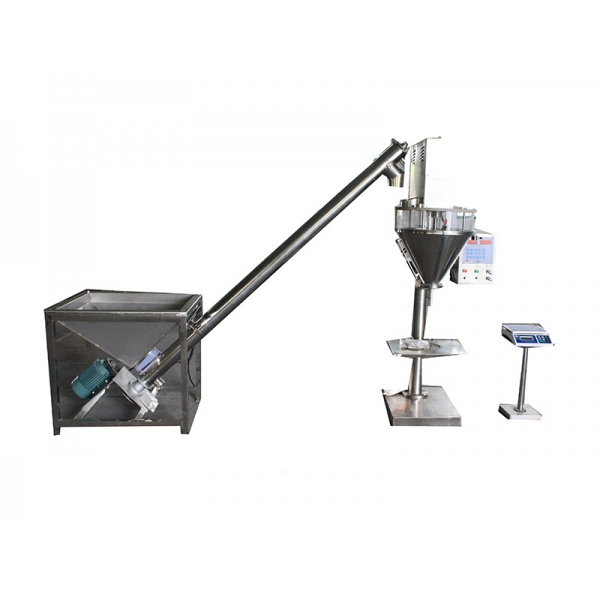

Manual Powder Packing System includes one set of DCS screw quantitative filling machine drived by servo motor, one set of belt conveyor or roller conveyor, one set of heat sealer machine, one set of lifting screw, used for filling powder.
Applied To: flour, food additives, carbon dust, fire extinguisher dry chemicals, graphene, albumen powder, milk power, facial mask powder, milk-tea powder etc.
Bag Material: Aluminum foil bag, kraft paper sack, PE bag, PP bag, Nylon bag, cloth bag etc.
| MODEL |
FILLING RANGE |
FILLING TIMES/H |
ACCURACY |
FEEDING TYPE |
MATERIAL SHAPE |
|
DCSP-S-0.5 |
1~500g |
900~2000 |
≤ 100g, ≤±2%；100 – 500g, ≤±1% |
Servo Screw |
Powder |
|
DCSP-D-0.5 |
1~500g |
3000~4000 |
≤ 100g, ≤±1.5%；100 – 500g, ≤±1% |
Servo Screw |
Powder |
|
DCSP-S-5 |
10~5000g |
900~2000 |
≤ 500g, ≤±1%; >500g, ≤±0.5% |
Servo Screw |
Powder |
|
DCSP-D-5 |
10~5000g |
2000~3000 |
≤ 500g, ≤±1%; >500g, ≤±0.5% |
Servo Screw |
Powder |
|
DCSP-S-25 |
10~25KG |
200~300 |
≤±0.2%; |
Servo Screw |
Powder |
|
DCSP-D-25 |
10~25KG |
400~600 |
≤±0.2%; |
Servo Screw |
Powder |
|
DCSP-S-50 |
10~50KG |
200~300 |
10 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1% |
Servo Screw |
Powder |
|
DCSP-D-50 |
10~50KG |
400~500 |
10 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1% |
Servo Screw |
Powder |
|
Application: Powders like food additives, Premix, Vitamins and other viscidity materials |
|||||
|
Bag Type: Pillow, Gusseted, and Gusseted Flat Bottom |
|||||
