• High design quality: Proven Cut & Wipe film treatment system; Standard low wrapping film clamp; Small footprint suits space constraints; Forward conveying system
• Remote control operation(Semi-auto): The remote control operation allows the operator to adjust the wrapping machine’s control settings while on the forklift.
• Power pre-stretch up to 400%: our Pallet Wrappers and Stretch Wrap have been engineered together to maximise the usage of the film by increasing its efficiency. It is possible to stretch a 2000 m roll of film to 10,000 m without the risk of breaking.
• Easy to use: Siemens PLC with touchscreen operator interface safe: AC variable frequency drives and motors are safe and require little maintenance

Specifications:

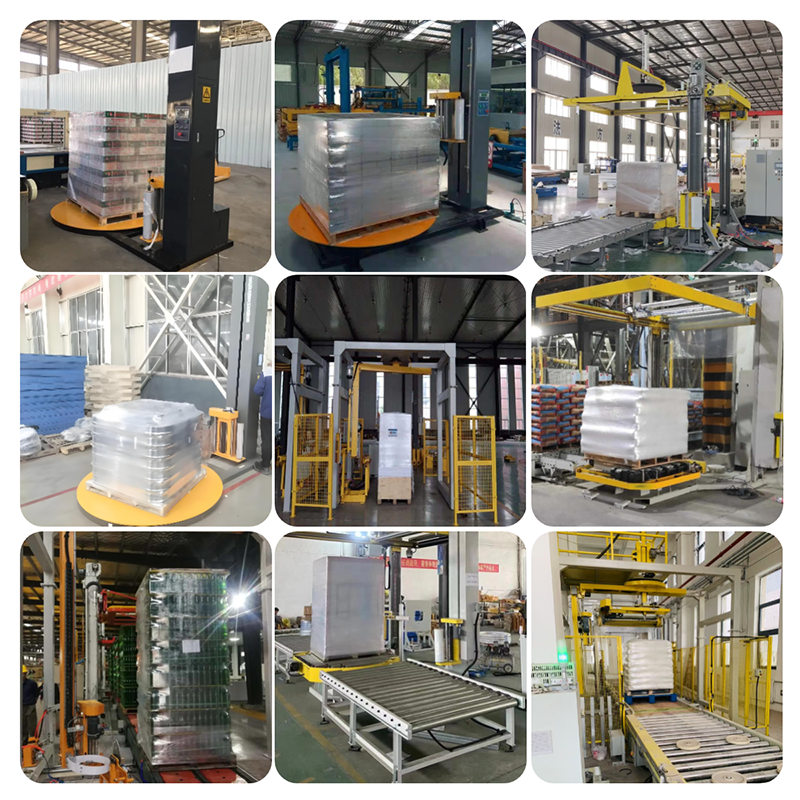

Application：

FAQ:

1. The differences of a semi-automatic wrapper and full automatic wrapper are ?
The main difference is the automation degree. While a semi-automatic (manually) pallet wrapper needs human intervention to start the cycle, the automatic pallet stretch wrapper is part of a fully automatic packing line. Meanwhile the semi-automatic platform stretch wrapper can be installed anywhere in the factory, its automatic variant needs a conveyor line that allows pallets to flow in and out..

2.How to choose a suitable pallet wrapper?
Usually, for low production (less than 20 pallets/hour), we recommend semi-automatic pallet wrappers, as they offer versatility yet higher wrapping quality than a robot wrapper. For a range of 30 – 40 pallets/hour, we recommend an automatic wrapper which can be either a rotary arm or a low-production ring wrapper. For higher outputs of 40 pallets/hour or specific wrapping requirements, the reliable choice will be a high-performance ring wrapper.

3. What kind of film and consumables does a pallet wrapper use?
Usually, the pallet wrapper uses stretch film, but they can also employ pre-stretched film or other new consumables on the market, such as kraft paper with stretching capabilities.

• The standard stretch film is composed of low-density line polyethylene (LLDPE) which is what gives it its high stretch capacity. Depending on the characteristics of the plastic and the stretch wrapper (and its pre-stretching system) this type of film can stretch between 25 and 300%. If both the film and the stretch wrapper allow a higher stretching (more than 150%), allowing also a higher saving.
• The pre-stretched film is a film that has already been stretched to its shrinkage limit (which is usually 100%) and is normally used in manual or semi-automatic applications without pre-stretching and low tension. It is a non-stretch film recommended for loads that need slight protection or restraint.
• Lastly, stretch kraft paper fulfills a similar function to pre-stretched film, with the great difference that it has a lower stretching capacity and does not allow the application of a rope system. Even so, it has recently appeared on the market as a more sustainable alternative to film, since it is 100% recyclable.
